机床有多款规格，详细配置、机床价格请和工作人员联系！按要求选配

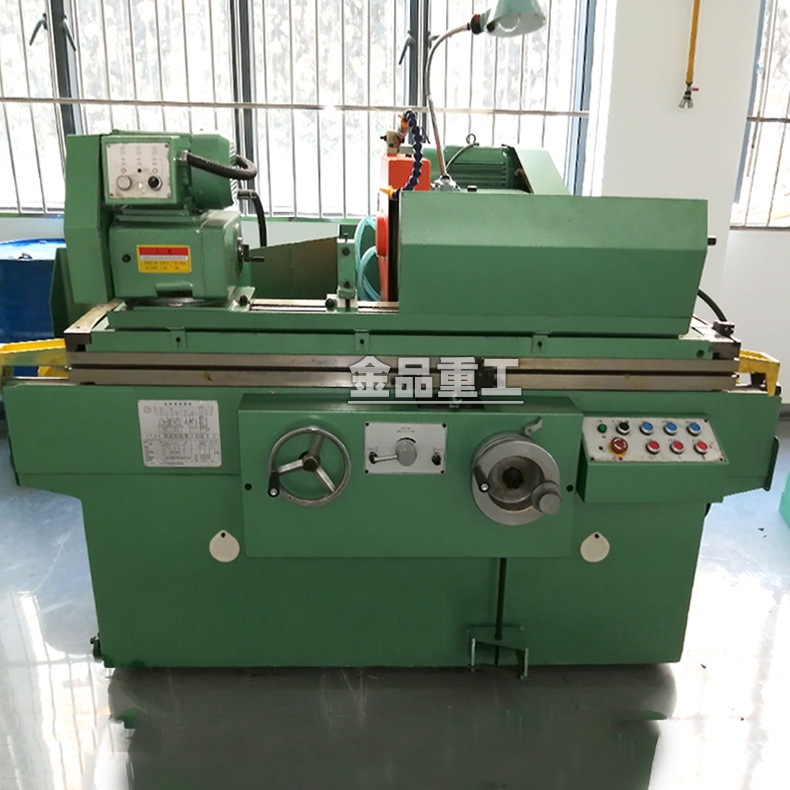

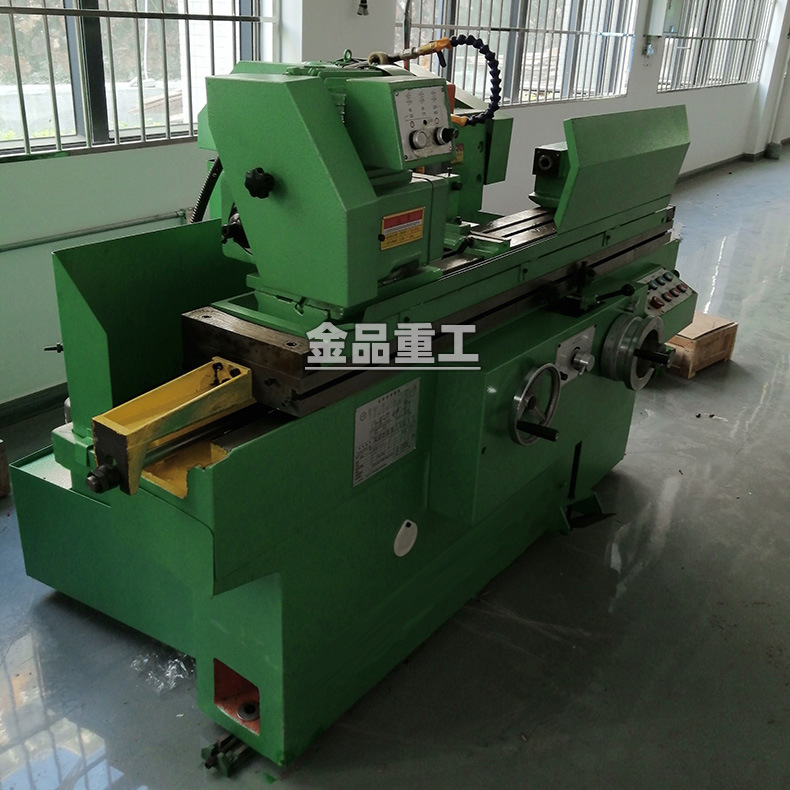

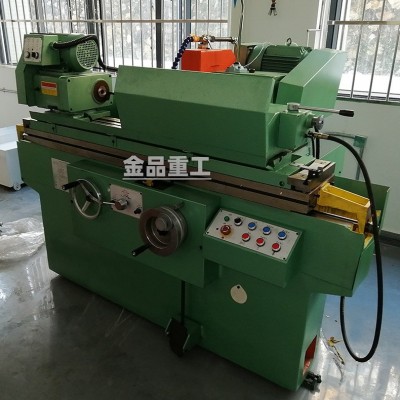

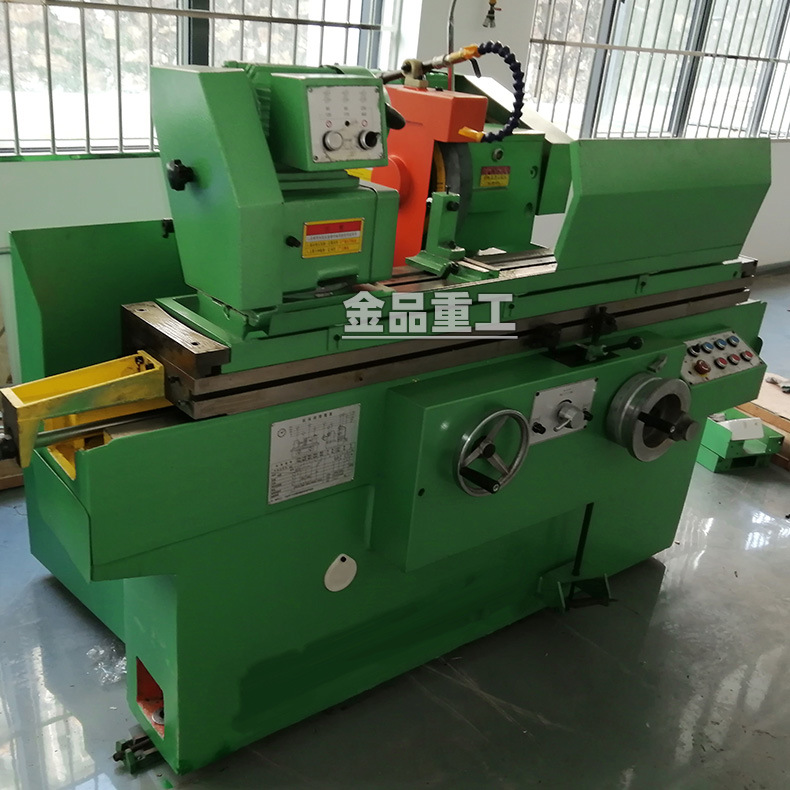

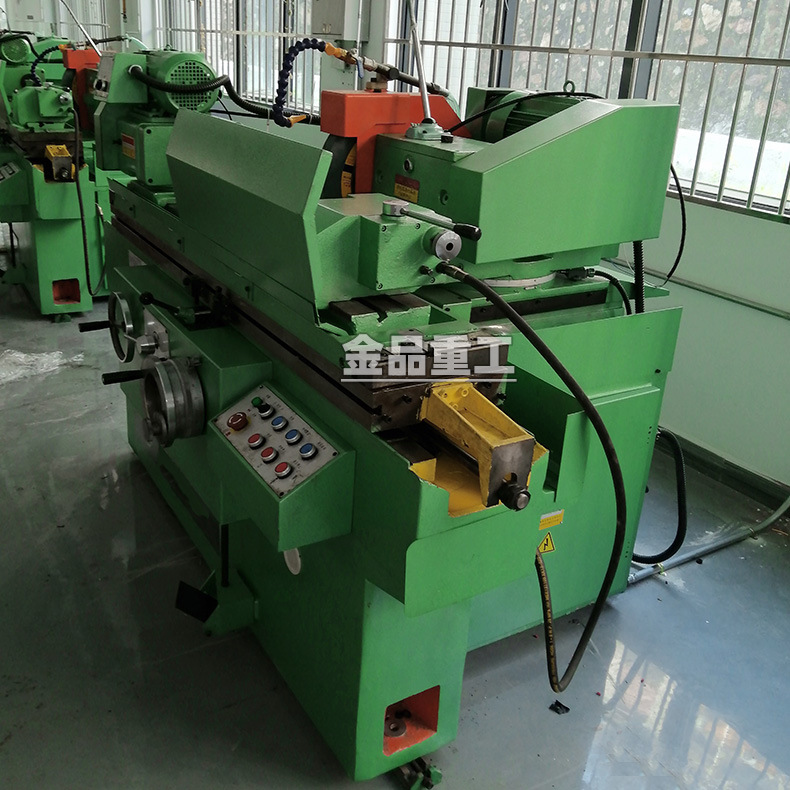

Cylindrical grinding machine | M1320-1000 |
Diameter of grinding | Dia.8~200mm |
Maximum grinding length | 1000mm |
Maximum spindle load-bearing | 50kg |
Maximum travel of working table | 1080mm |
Speed of working table | 100~4000mm/r/min |
Rotary angel of working table | -3~+7° |
Rotary angel of headstock | -30~90° |
Rotary angel of grinding wheel | 180° |
Center height | 125mm |
Center sleeve taper | 3# |
Grinding wheel size | 400*40/50*203 |
Speed of headstock | 60、85、230、120、170、460r/min |
Speed of grinding wheel | 1780r/min |
High-speed travel of grinding wheel | 20mm |
Maximum travel of grinding wheel | 150mm |
Feeding rate of grinding wheel handwheel per grid | 0.005mm |
Feeding rate of grinding wheel handwheel per rev | 1mm |
Power of grinding wheel motor | 4kw |
Power of headstock motor | 0.25/0.37kw |
Power of oil pump motor | 0.75kw |
Power of cooling motor | 0.125kw |
Dimension (length * width * height) | 3100*1450*1650 |
Weight | 3000kg |
注：机床图片价格及参数供参考，详情旺旺工作人员！ |
